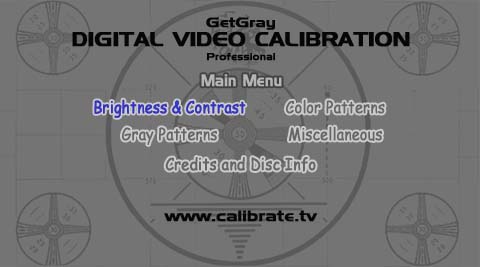

Sample Menus and patterns (NTSC ver 1.0)
GetGray Digital Video Calibration
Professional
Sample Menus and patterns (NTSC ver 1.0)
Animated moving bars brightness pattern
(black background and
levels modified in sample picture below for clarity) :

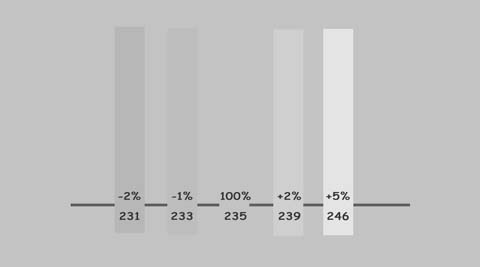

Animated moving bars contrast pattern
(white background and
levels modified in sample picture below for clarity) ::
Dual brightness contrast pattern
with high APL (modified in
sample picture below for clarity):

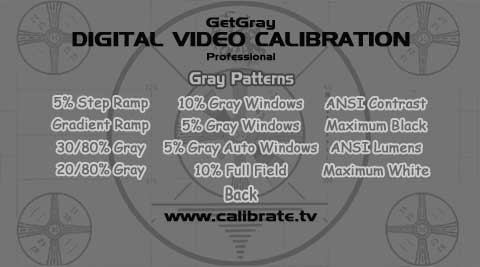

Full set of labelled gray patterns. 10% steps set,
5% steps set,
and 5% automated steps (tone control of OpticOne, or CA6X, etc.
software)

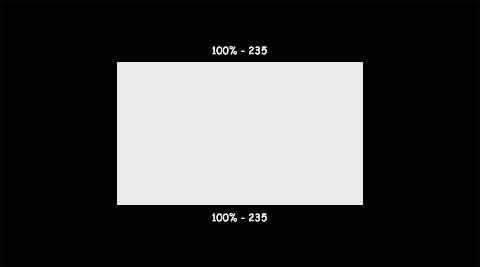

All gray window patterns have the layout format as below:

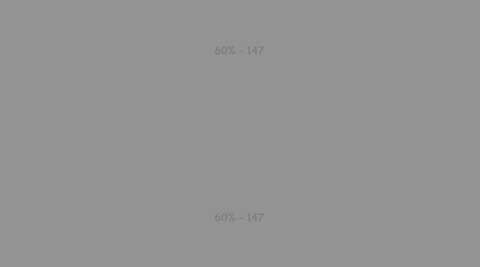

One set of full-field gray patterns from 0% to 100%
amplitude:
ANSI contrast checkerboard includes
corresponding inverse
pattern for performing "modified ANSI" WSR type measurment
ANSI lumen measurment locator pattern
PLUS:
"Maximum Black" and "Maximum White" are full screen maximum
black (digital 1)
and maximum white (digital 254) patterns for measuring on-off contrast
Color and tint multi-pattern with
animated section:
RGB 5% stepped ramps for checking
RGB clipping

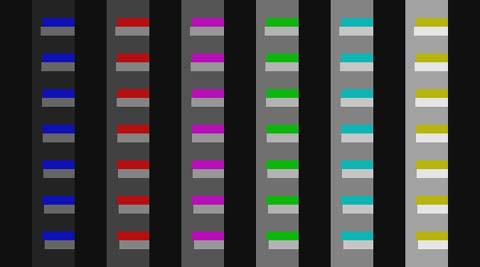

Y/C Delay Adjustment
Full set of 75% and 100% color window
patterns RGBCMY, plus
corresponding level gray window pattern with each set:
Frequency burst patterns for adjusting resolution, or sharpness

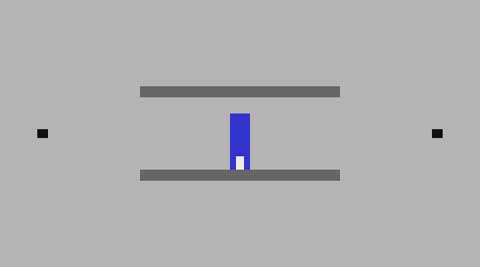

Lipsync Pattern for adjusting audio-video
synchronization
Belle Nuit general test chart (by
permission of author).
Same pattern used on HQV test disc.
